제품 세부 정보
Place of Origin: CHINA
Model Number: CNC5X-700B
지불 및 배송 조건
Minimum Order Quantity: 1
가격: 218800RMB
Packaging Details: width 2200 x length 5200 x height 2350mm
Delivery Time: 15 work days
Payment Terms: L/C,D/A
Equipment dimensions(mm): |
6200×3300×3800 |
Camera functon: |
Industrial Camera |
The knife function: |
Optional |
Chuckfunction: |
Optional |
Cutter function: |
Optional |
Beam structure: |
Casting iron |
Aaxis stroke: |
0-90(automatic) |
Saw blade diamete(mm): |
350-700 |
Platform size(mm): |
3600×2000 |
Equipment dimensions(mm): |
6200×3300×3800 |
Camera functon: |
Industrial Camera |
The knife function: |
Optional |
Chuckfunction: |
Optional |
Cutter function: |
Optional |
Beam structure: |
Casting iron |
Aaxis stroke: |
0-90(automatic) |
Saw blade diamete(mm): |
350-700 |
Platform size(mm): |
3600×2000 |
Introduction

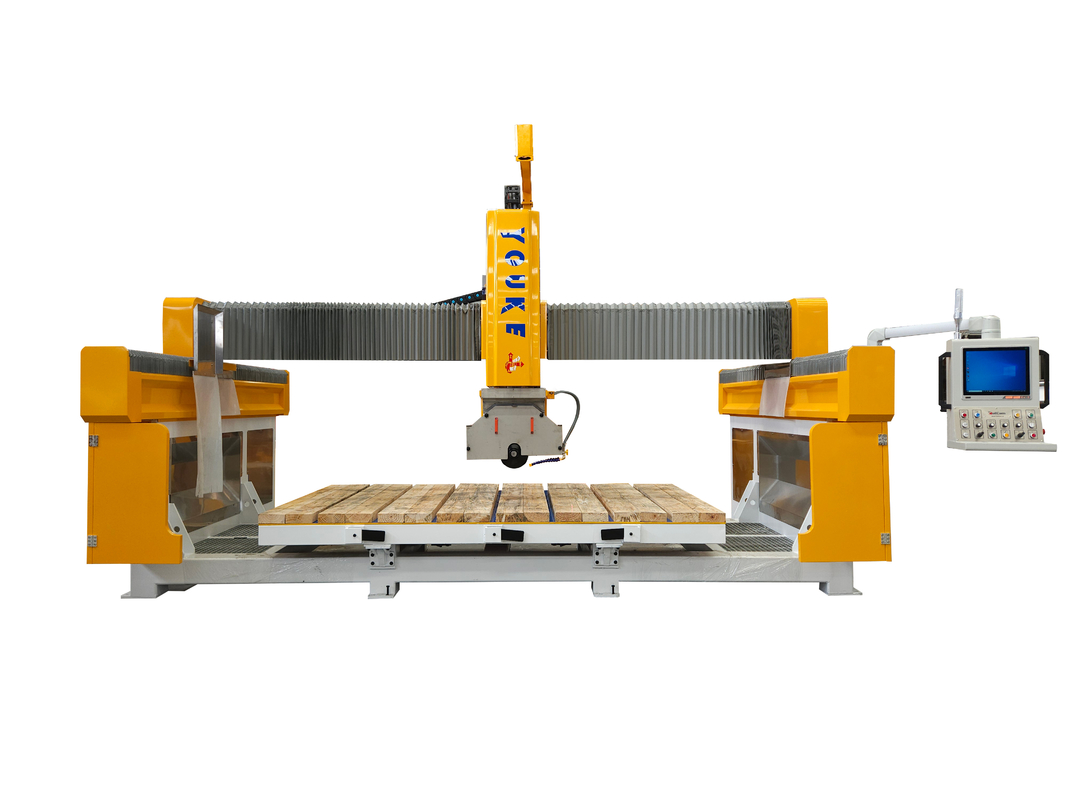

Functioning as advanced CNC equipment, the 5-axis bridge cutting machine is principally intended for the sectioning and processing of stone, tile, marble, and associated materials. The simultaneous motion of five axes facilitates intricate cutting and engraving tasks, possessing the attributes of high precision and efficiency.
Functional Characteristic
Integrated Heavy-Duty 5-Axis Bridge Cutting System
Engineered for precision cutting and contour processing of specialty plates (polygons, triangles, fans, tabletops, ovals, diamonds, circles, equine-edge profiles, multi-angle chamfers, linear/arc copying). Delivers rapid operation, micron-level accuracy, and intuitive controls for granite, marble, quartz, and sintered stone.
Control System
Powered by ESA Italy’s dedicated 5-axis CNC with bus-communication drives, RTCP kinematics, and CAD compatibility. Achieves real-time responsiveness and enhanced machining precision.
Mechanical Construction
Reinforced cast beam with machine-tool-grade components. X-axis: Triple 35mm linear guides; Y/Z-axis: 35mm guides. Qinchuan RV reducers ensure structural integrity and dimensional stability.
